Moară cu rotor SR 300

Solicita o estimare gratuita, fără caracter obligatoriu!

Vă rugăm să selectați elementele pe care doriți să le includeți adăugându-le in lista de solicitare.
După ce ați adăugat un element, lista va fi vizibilă în colțul din dreapta sus al site-ului

Solicitare generală

Nu sunteți sigur de ce articole aveți nevoie sau doriți o ofertă de preț?

Rotor Beater Mill SR 300

Rotor Beater Mill SR 300 with rotor, 240 mm filter hose and collecting receptacle (please order retaining frame, sieves and optional base frame separately)
20.752.0001
SR 300200–240 V, 50/60 Hz, incl. standard rotor
20.752.0002
SR 300200–240 V, 50/60 Hz, incl. distance rotor
22.824.0007Base frame with wheels


Retaining frames and ring sieves for SR 300

Ajutor selecție
Ajutor selecție
Available retaining frames:

  • Retaining frame 360°:
    For soft, medium-hard or fibrous sample materials we recommend the use of the retaining frame 360° as shearing is the most suitable size reduction principle.

  • Retaining frame 180°:
    Medium-hard, hard (up to Mohs hardness 4), and brittle samples are best pulverized by using the retaining frame 180° with grinding insert for sieves 180° as impact and shearing are the most suitable size reduction principles.

Retaining frame 360° of stainless steel

22.642.0004Retaining frame 360°

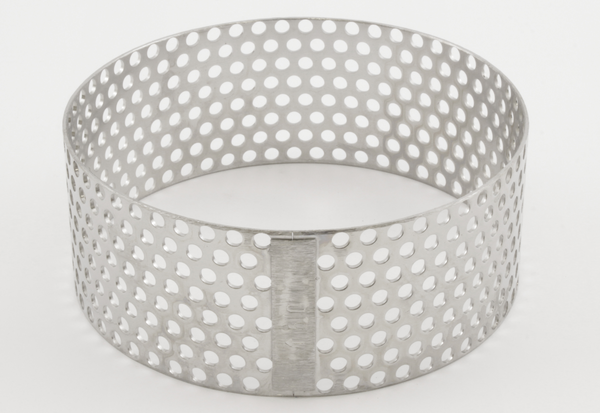

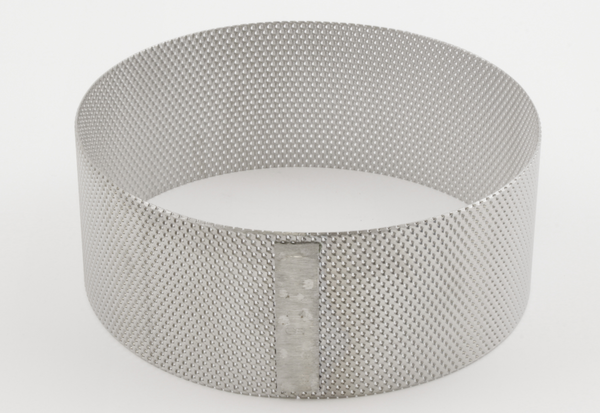

Ring sieves 360° of stainless steel

02.407.0057
Găuri trapezoidale0.08 mm
02.407.0026
Găuri trapezoidale0.12 mm
02.407.0028
Găuri trapezoidale0.20 mm
02.407.0029
Găuri trapezoidale0.25 mm
02.407.0120
Găuri trapezoidale0.35 mm
02.407.0030
Găuri trapezoidale0.50 mm
02.407.0031
Găuri trapezoidale0.75 mm
02.407.0032
Găuri trapezoidale1.00 mm
02.407.0058
Găuri trapezoidale1.25 mm
02.407.0033
Găuri trapezoidale1.50 mm
02.407.0034
Găuri trapezoidale2.00 mm
02.407.0035
Găuri rotunde3.00 mm
02.407.0036
Găuri rotunde4.00 mm
02.407.0037
Găuri rotunde5.00 mm
02.407.0043
Găuri rotunde6.00 mm
02.407.0039
Găuri rotunde8.00 mmfor pre-grinding
02.407.0040
Găuri rotunde10.00 mm


Retaining frame 180° of stainless steel

02.143.0066Retaining frame with grinding insert for sieves 180°


Sieves 180° of stainless steel

03.647.0081
Găuri trapezoidale0.08 mm
03.647.0039
Găuri trapezoidale0.12 mm
03.647.0040
Găuri trapezoidale0.20 mm
03.647.0041
Găuri trapezoidale0.25 mm
03.647.0395
Găuri trapezoidale0.35 mm
03.647.0042
Găuri trapezoidale0.50 mm
03.647.0043
Găuri trapezoidale0.75 mm
03.647.0044
Găuri trapezoidale1.00 mm
03.647.0045
Găuri trapezoidale1.25 mm
03.647.0046
Găuri trapezoidale1.50 mm
03.647.0047
Găuri trapezoidale2.00 mm
03.647.0048
Găuri rotunde3.00 mm
03.647.0049
Găuri rotunde4.00 mm
03.647.0050
Găuri rotunde5.00 mm
03.647.0051
Găuri rotunde6.00 mm
03.647.0052
Găuri rotunde8.00 mm
03.647.0053
Găuri rotunde10.00 mmfor pre-grinding


Accessories SR 300



Cyclone-suction-combination for SR 300

Utilizare recomandată
Utilizare recomandată
The cyclone-suction combination is recommended for the homogenization of low density materials as the air jet which is generated improves discharge of the sample from the grinding chamber.

Moreover, the sample is cooled which is particularly beneficial for heat-sensitive materials.
22.935.0020Cyclone unit incl. 5 litres collection receptacle (to be used with industrial vacuum cleaner)
22.935.0021Cyclone unit incl. 26 litres collection receptacle (to be used with industrial vacuum cleaner)
22.748.0005Industrial vacuum cleaner for mills, 230 V, 50/60 Hz (other electrical versions and spare filter bags available upon request)


Additional items SR 300

Ajutor selecție
Ajutor selecție
Rotor Types:
    • Standard rotor:
      Due to the small grinding gap it generates particularly strong shearing forces which is beneficial for pulverizing, e. g. fibrous materials.

    • Distance rotor:
      For heat-sensitive, slightly fatty samplesr. The larger grinding gap ensures reduction of frictional heat, thus preventing blocking of the sieves or the rotor.
22.717.0007Distance rotor of stainless steel
22.717.0006Standard rotor of stainless steel

03.010.0052Sieve cassette, stainless steel
22.187.0008Ring-type filter for collecting receptacle 5 litres
22.748.0001Dust filter clamping rings for ring-type filter, incl. 5 dust filters
05.742.0008Dust filters for ring-type filter, 25 pieces
02.011.0038Collecting receptacle, 5 litres, stainless steel
02.187.0020Filter hose for collecting receptacle 5 litres, length 240 mm, incl. “comfort” flange
02.186.0037Spare filter hose for 02.187.0020
22.003.0015Collecting receptacle, 26 litres, plastic, incl. filter hose and “comfort” flange
02.186.0042Spare filter hose for 22.003.0015
99.200.0024IQ/OQ Documentation for SR 300


Vibratory Feeder DR 100 for SR 300

DR 100 drive unit (please order feeding kit separately)
70.938.0001
DR 100 drive unit220–240 V, 50 Hz
70.938.0003
DR 100 drive unit220–240 V, 60 Hz
70.938.0010
DR 100 drive unit200 V, 50 Hz
70.938.0006
DR 100 drive unit200 V, 60 Hz
72.020.0019Feeding kit DR 100/3.5 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 3.5 litres and holder for hopper and fixture
72.020.0020Feeding kit DR 100/22 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 22 litres and holder for hopper and fixture
