Moară cu rotor cruce SK 300

Moară cu rotor cruce SK 300

Solicita o estimare gratuita, fără caracter obligatoriu!

Vă rugăm să selectați elementele pe care doriți să le includeți adăugându-le in lista de solicitare.
După ce ați adăugat un element, lista va fi vizibilă în colțul din dreapta sus al site-ului

Solicitare generală

Nu sunteți sigur de ce articole aveți nevoie sau doriți o ofertă de preț?

Trimiteți o solicitare

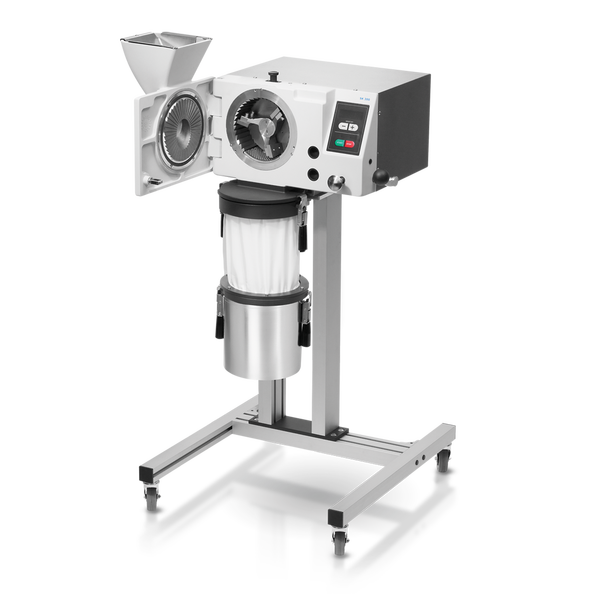

Cross Beater Mill SK 300

Cross Beater Mill SK 300 with cross beater, baffle plates, 240 mm filter hose and collecting receptacle
(please order bottom sieve and optional base frame separately)

Ajutor selecție
Ajutor selecție
Depending on the sample material and subsequent analysis, grinding inserts and tools of different materials may be used:

  • Cast iron:
    Low-priced option

  • Hardened steel:
    Particularly suitable for grinding abrasive materials (like slag).

  • Stainless steel:
    With its superior characteristics (like high corrosion resistance) it is suitable for most sample materials.

  • Steel 1.1740:
    For heavy-metal-free grinding a combination of cast iron and steel 1.1740 is recommended.
grinding assembly / cross beater / baffle plates
20.751.0001
SK 300200–240 V, 50/60 Hzcast iron / cast iron / hardened steel
20.751.0002
SK 300200–240 V, 50/60 Hzhardened steel / cast iron / hardened steel
20.751.0003
SK 300200–240 V, 50/60 Hzstainless steel / stainless steel / stainless steel
20.751.0004
SK 300200–240 V, 50/60 Hzcast iron / cast iron / steel 1.1740
for grinding without heavy-metal contamination
22.824.0007Base frame with wheels

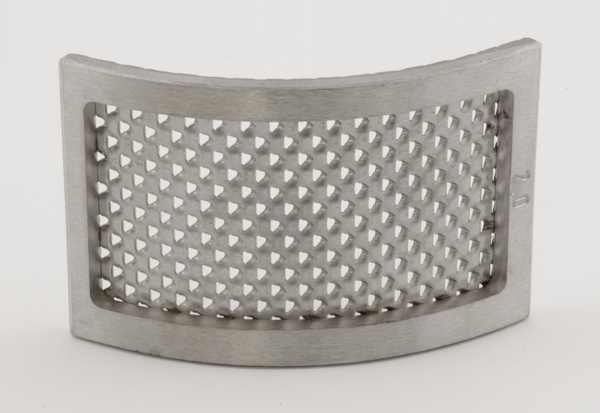

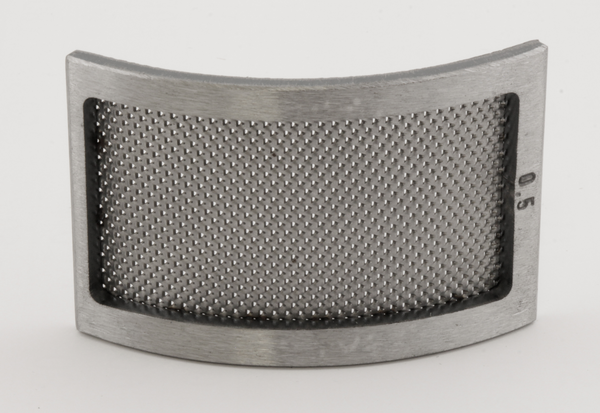

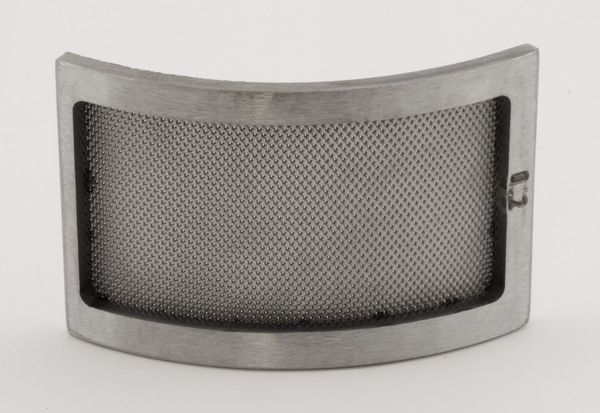

Bottom sieves SK 300

Bottom sieves SK 300 of stainless steel

02.407.0098
Găuri trapezoidale0.12 mm
02.407.0099
Găuri trapezoidale0.20 mm
02.407.0100
Găuri trapezoidale0.25 mm
02.407.0121
Găuri trapezoidale0.35 mm
02.407.0101
Găuri trapezoidale0.50 mm
02.407.0102
Găuri trapezoidale0.75 mm
02.407.0103
Găuri trapezoidale1.00 mm
02.407.0104
Găuri trapezoidale1.50 mm
02.407.0105
Găuri trapezoidale2.00 mm
02.407.0106
Găuri rotunde3.00 mm
02.407.0107
Găuri rotunde4.00 mm
02.407.0108
Găuri rotunde5.00 mm
02.407.0109
Găuri rotunde6.00 mm
02.407.0110
Găuri rotunde8.00 mm
02.407.0111
Găuri rotunde10.00 mm


Bottom sieves of steel 1.0344 for grinding without heavy-metal contamination

02.407.0112
Găuri trapezoidale0.12 mm
02.407.0113
Găuri trapezoidale0.20 mm
02.407.0114
Găuri trapezoidale0.25 mm
02.407.0122
Găuri trapezoidale0.35 mm
02.407.0115
Găuri trapezoidale0.50 mm
02.407.0116
Găuri trapezoidale0.75 mm
02.407.0117
Găuri trapezoidale1.00 mm
02.407.0118
Găuri trapezoidale1.50 mm
02.407.0119
Găuri trapezoidale2.00 mm


Cyclone-suction-combination for SK 300

Utilizare recomandată
Utilizare recomandată
The cyclone-suction combination is recommended for the homogenization of low density materials as the air jet which is generated improves discharge of the sample from the grinding chamber.

Moreover, the sample is cooled which is particularly beneficial for heat-sensitive materials.
22.935.0022Cyclone unit incl. 5 litres collection receptacle (to be used with industrial vacuum cleaner)
22.935.0023Cyclone unit incl. 26 litres collection receptacle (to be used with industrial vacuum cleaner)
22.748.0005Aspirator industrial pentru mori, 230 V, 50/60 Hz
(la cerere sunt disponibile și alte versiuni electrice)


Additional items SK 300

22.187.0008Ring-type filter for collecting receptacle 5 litres
22.748.0001Dust filter clamping rings for ring-type filter, incl. 5 dust filters
05.742.0008Dust filters for ring-type filter, 25 pieces
02.011.0038Collecting receptacle, 5 litres, stainless steel
02.187.0020Filter hose for collecting receptacle 5 litres, length 240 mm, incl. “comfort” flange
02.186.0037Spare filter hose for 02.187.0020
22.003.0015Collecting receptacle, 26 litres, plastic, incl. filter hose and “comfort” flange
02.186.0042Spare filter hose for 22.003.0015
99.200.0023IQ/OQ Documentation for SK 300
22.443.0004
Grinding assemblycast iron
22.443.0005
Grinding assemblyhardened steel
22.443.0006
Grinding assemblyoțel inoxidabil
22.716.0003
Cross beatercast iron
22.716.0004
Cross beateroțel inoxidabil
22.526.0007
Baffle plateshardened steel, 3 pieces
22.526.0008
Baffle platesstainless steel, 3 pieces
22.526.0009
Baffle platessteel 1.1740, 3 pieces
for grinding without heavy-metal contamination


Vibratory Feeder DR 100 for SK 300

DR 100 drive unit (please order feeding kit separately)
70.938.0001
DR 100 drive unit220–240 V, 50 Hz
70.938.0003
DR 100 drive unit220–240 V, 60 Hz
70.938.0010
DR 100 drive unit200 V, 50 Hz
70.938.0006
DR 100 drive unit200 V, 60 Hz
72.020.0019Feeding kit DR 100/3.5 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 3.5 litres and holder for hopper and fixture
72.020.0020Feeding kit DR 100/22 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 22 litres and holder for hopper and fixture
